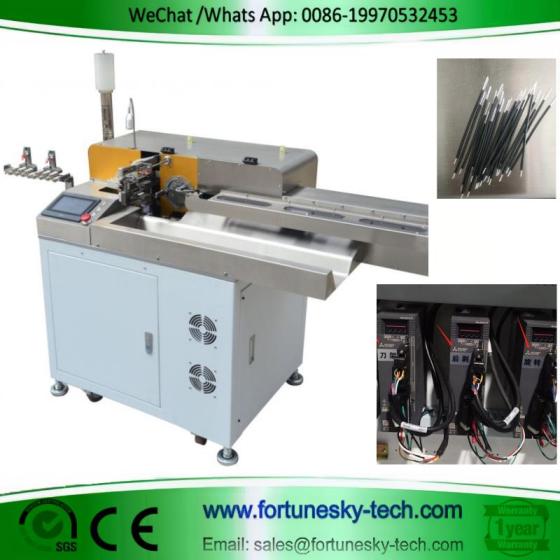

Automatic Wire Multi-Cut, Strip, Twist & Both-Ends Tinning Machine – Cable Processing – For Sale

Unleash Peak Wire Processing Efficiency:

The All-New Automatic 10-Wire Tinning Machine Introducing the next generation of wire processing technology: the Automatic Multi-Function Tinning Machine.

This innovative machine processes up to 10 wires simultaneously (AWG26 to AWG32), performing cutting, stripping, twisting, and tinning in a single, streamlined operation.

Key Features:

Unmatched Multi-Wire Processing: Effortlessly manage ten wires at once, significantly boosting production output.

Versatile Functionality: Integrates cutting, stripping (single or double-ended), twisting (single or double-ended), and precise tinning for exceptional adaptability to diverse processing needs.

Exceptional Efficiency: Achieve impressive production rates of 16,000-22,000 pieces per hour, depending on wire specifications and cutting length.

User-Friendly Design:Compact footprint minimizes space requirements.Intuitive digital touchscreen with a Chinese interface facilitates easy operation and reduces training time.Stores up to 100 processing procedures for quick setup changes.

Advanced Technology:High-speed DSP distributed control system ensures precise and rapid processing.Silent hybrid servo drive minimizes noise levels.Automated features like blade positioning and twisting mechanism reset enhance ease of use.

Low Maintenance:Simplified design streamlines maintenance procedures.Built-in fault indicators enable quick troubleshooting and resolution.

Unparalleled Support:The company provides comprehensive after-sales service, including training, installation, commissioning, maintenance, and ongoing support.

Technical Specifications:

Power Supply: AC220V/50/60HZ Single Phase

Functions:Wire CuttingSingle/Double-End Stripping

Single/Double-End TwistingSingle-End Twisting & TinningDouble-End Twisting & TinningProductivity: 16,000-22,000 pcs/hour (depending on wire cutting length)

Note: Capacity varies based on wire type and size.

Applicable Wire Range: Hookup Diameter 0.3mm-3.0mm (AWG32-AWG18)

Cutting Length: 8mm to 9999mm

Stripping Length: 0.0mm to 10mm

Twisting Length: 3.0mm to 10mm

Tinning Length: 1mm to 10mm

Air Pressure: 6kgf (Clean and Dry Air Required)

Dimension: 670 x 840 x 1200 mm (W x L x H)

Net Weight: Approximately 310 Kg

The Automatic Multi-Function Tinning Machine is a perfect solution for businesses seeking to revolutionize their wire processing. Its exceptional efficiency, multi-functionality, user-friendly design, low maintenance requirements, and comprehensive after-sales support make it a valuable asset for any high-volume production environment.
