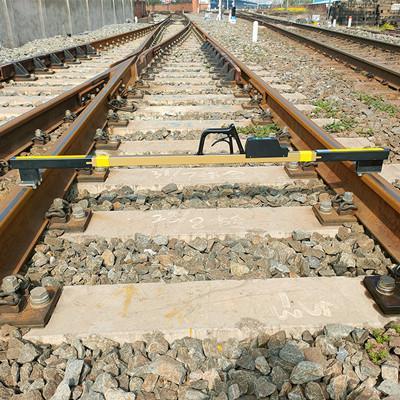

Digital Track Gauge
Digital Track Gauge can directly read the measurement values of railway track gauge, super elevation , check rail gauge, back to back distance and flangeway clearance through microelectronics, embedded and sensor technologies and OLED display screen.
FEATURE
1. Large LED backlit display: especially suitable for day outside and dark night 2. Quick calibration operation: simple measurement process 3. Large capacity battery:long standby time 4. Accurate measurement:keep long-term stability 5. Temperature compensation :working temperature is -30~+55℃ 6. Insulated design 7. Anti-electromagnetic interference 8. Waterproof:could use in rainy day 9. power saving function: no operation within 15 minutes, the system will automatically shut down. 10. Approval by CHINA ACADEMY OF RAILWAY SCIENCES
11.1000mm,1067mm,1435mm,1520mm,1600mm,1676mm track gauge is available.
SPECIFICATION
Model(1435mm) | GJC-TJG1 |
Track gauge(mm) | 1384-1470 |
Gauge rail check gauge(mm) | 1364-1450 |
Guard rail face gauge(mm) | 1344-1430 |
Superelevation measuring range(mm) | -200~+200 |
Flangeway Clearance(mm) | 20-107 |
Superelevation division value(mm) | 0.10 |
Track gauge division value(mm) | 0.1 |
Track gauge max indication error(mm) | ±0.25 |
Superelevation error(mm) | ±0.45 |
Application rail line | railway speed less than 250km/h |
